Global Optimizers

Combined Basin and Minima Hopping

TSASE contains a software package which combines features from multiple global optimization (GO) methods including Basin Hopping [1] and Minimia Hopping [2]. In this software package, you can select a move type (dynamics versus random), an acceptance criteria, and whether to utilize history.

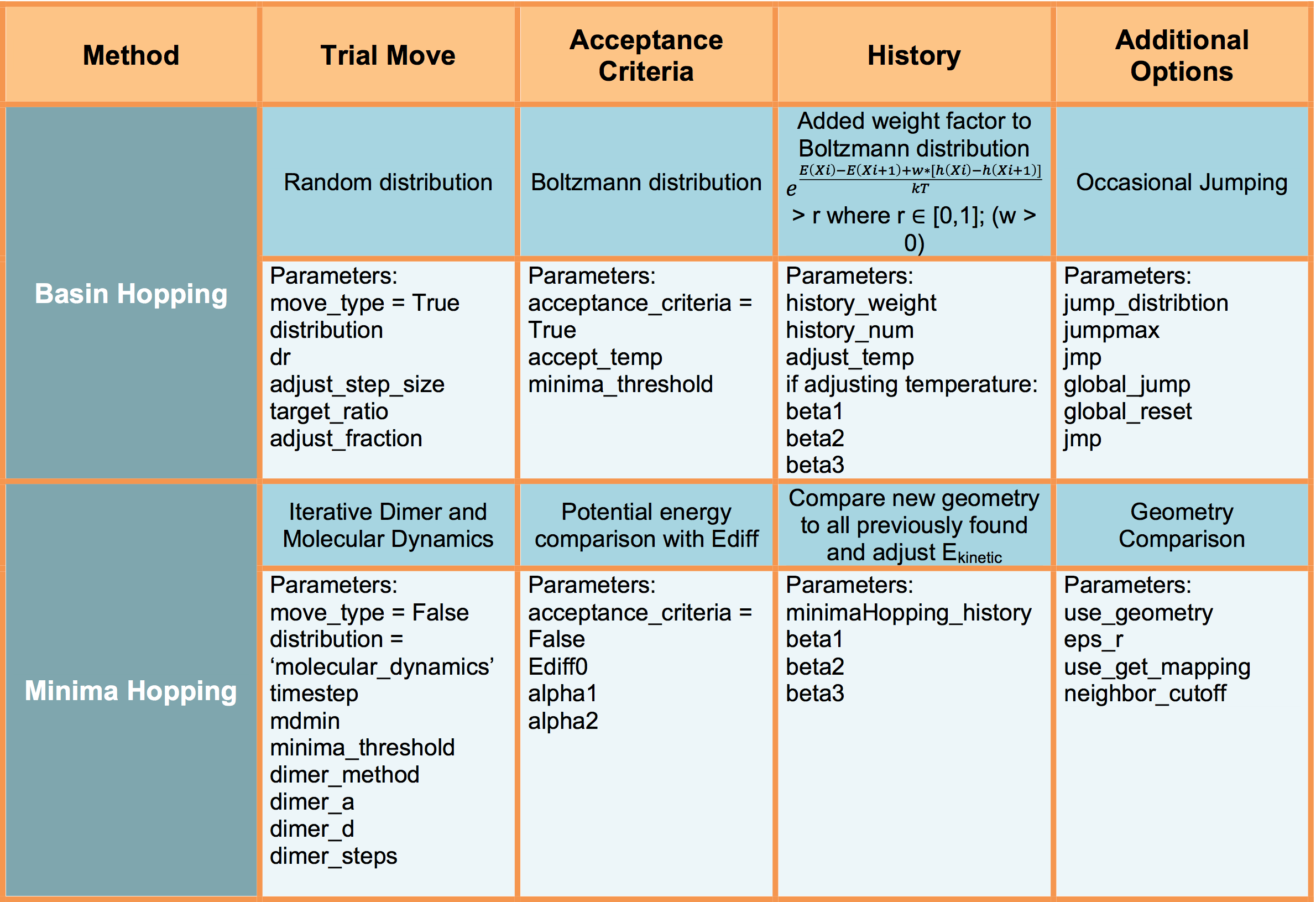

Below outlines the features of this combined GO software:

class tsase.optimizer. Hopping (self, atoms, temperature=100, optimizer=SDLBFGS, fmax=0.05, dr=0.4, adjust_cm=True, mss=0.1, minenergy=None, distribution=’uniform’, adjust_step_size=10, target_ratio=0.5, adjust_fraction=0.05, significant_structure=True, pushapart=0.4, jumpmax=10, jmp=7, global_jump=None, global_reset=False, jump_distribution=’uniform’, dimer_a=0.001, dimer_d =0.01, dimer_steps=20, timestep=0.1, mdmin=2, history_weight=0.0, history_num=0, adjust_temp=True, accept_temp=None, acceptance_criteria=False, minimaHopping_history=True, beta1=1.04, beta2=1.04, beta3=1.0/1.04, Ediff0=0.5, alpha1=0.98, alpha2=1./0.98)

General GO parameters

atoms : atoms object defining the PES

temperature : temperature in Kelvin

optimizer : local optimizer (QuasiNewton, FIRE, SDLBFGS)

fmax : magnitude of the L2 norm used as the convergence criteria for local optimization

adjust_cm : fix the center of mass

mss : maximum stepsize for the local optimization

minenergy : the GO algorithm stops when a configuration is found with a lower potential energy than this value

pushapart : push atoms apart until all atoms are no closer than this distance

keep_minima_arrays : True: creates global_minima and local_minima arrays of length maximum number of Monte Carlo steps; this will result in extra zeros at the end of the array if the run finishes before the maximum number of Monte Carlo steps are taken

Selecting Move Type

move_type : type of trial move (True = BH; False = MH)

distribution : the distribution used for the displacement of each atom

default: uniform

options: ‘gaussian’: the parameter dr serves as the standard deviation of the gaussian distribution

‘uniform’: a uniform random number is selected in the interval [-dr,dr]

‘linear’: a uniform random number is selected in the interval [-dr*d,dr*d] where d is the distance from the geometric center of a cluste [3]

‘quadratic’: a uniform random number is selected in the interval [-dr*d*d,dr*d*d] where d is the distance from the geometric center of a cluster [3]

‘molecular_dynamics’: Molecular dynamics move type

Random Move Parameters

dr : maximum displacement in each degree of freedom for Monte Carlo trial moves

adjust_step_size: adjust the step size after this many Monte Carlo steps so that a target_ratio of steps are accepted.

default is ‘None’ and step size will not be adjusted. Any positive integer will turn on this feature

target_ratio: specified ratio of accepted steps. Default: 0.5

adjust_fraction: the fraction by which to change the step size in order to meet the target acceptance ratio

default: 0.05

significant_structure : displace from the optimized structures after each acceptance [4]

Dynamic Move Parameters

timestep : timestep in fs

mdmin : number of times the dynamics need to pass a minima to stop the MD simulation

dimer_method : Use an iterative dimer method before MD (True or False) [6]

dimer_a : dimer ajustment parameter; scalar for forces in optimization [6]

dimer_d : dimer adjustment parameter; distance between two images in the dimer [6]

dimer_steps : dimer adjustment parameter; number of dimer iterations [6]

Occasional Jumping

jump_distribution : options are the same as the distribution flag (‘uniform’, ‘molecular dynamics’, etc.)

jumpmax : after this number of consecutive rejected Monte Carlo or Minima Hopping moves, accept the following jmp moves. This allows for a more global search of the potential energy surface. [5]

jmp : number of consecutive accepted moves when occassionally jumping. [5]

global_reset : reset history if an occasional jump is taken (True)

global_jump : After visiting a state for global_jump number of times, accept the following jmp moves of jump_distribution. Set to None to turn off.

Selecting Acceptance Criteria

acceptance_criteria : This flag specifies which acceptance criteria to use. True for BH or False for MH

BH Acceptance Parameters

accept_temp : seperate temperature to use for BH acceptance

adjust_temp : dynamically adjust the temperature in BH acceptance (True or False)

history_weight : weight factor for BH history, set to 0.0 to turn off history [7]

history_num : limit of previously accepted minima to keep track of for BH history, set to 0 to keep track of all accepted minima

Minima Hopping Acceptance Parameters

beta1 : 1.04, temperature adjustment parameter

beta2 : 1.04, temperature adjustment parameter

beta3 : 1./1.04, temperature adjustment parameter

Ediff0 : 0.5 eV, initial energy acceptance threshold

alpha1 : 0.98, energy threshold adjustment parameter

alpha2 : 1./0.98, energy threshold adjustment parameter

minimaHopping_history : set to True if using MH history components otherwise set to False

Geometry Comparision Parameters

use_geometry : compare geometries of states (True or False) when false only potential energies are compared

eps_r : positional difference to consider atoms in the same location

use_get_mapping : which geometry comparision method from atoms_operator.py to use (True for get_mapping or False for rot_match)

neighbor_cutoff : parameter for get_mapping

Usage:

Below is an example script of how to use this optimizer:

from tsase.optimize.minima_basin2 import Hopping

lj = tsase.calculators.lj(cutoff=35.0)
system = tsase.io.read_con('lj38-cluster.con')
system.set_calculator(lj)
opt = Hopping(atoms=system, minenergy=-173.918427)
opt(10000)

Below is an example script of how to use the combined GO algorithm to run standard MH:

from tsase.optimize.minima_basin2 import Hopping

lj = tsase.calculators.lj(cutoff=35.0)
system = tsase.io.read_con('lj38-cluster.con')
system.set_calculator(lj)
opt = Hopping(atoms=system,
              temperature=500,
              minenergy=-173.918427,
              move_type = True,
              distribution='molecular_dynamics',
              jumpmax=None,
              global_jump=None,
              global_reset=False,
              dimer_a=0.001,
              dimer_d=0.01,
              dimer_steps=20,
              timestep=0.1,
              mdmin=2,
              acceptance_criteria=False,
              minimaHopping_history=True,
              beta1=1.04,
              beta2=1.04,
              beta3=1.0/1.04,
              Ediff0=0.5,
              alpha1=0.98,
              alpha2=1./0.98,
              use_geometry=True,
              keep_minima_arrays=False)
opt(10000, maxtemp=50000)

Below is an example script of how to use the combined GO algorithm to run standard BH:

from tsase.optimize.minima_basin2 import Hopping

lj = tsase.calculators.lj(cutoff=35.0)
system = tsase.io.read_con('lj38-cluster.con')
system.set_calculator(lj)
opt = Hopping(atoms=system,
              temperature=8000,
              dr=0.4,
              minenergy=-173.918427,
              move_type = True
              distribution='uniform',
              adjust_step_size=10,
              target_ratio=0.5,
              jumpmax=None,
              global_jump=None,
              global_reset=False,
              history_weight=0.0,
              history_num=0,
              adjust_temp=False,
              accept_temp = None,
              acceptance_criteria=True,
              use_geometry=True,
              keep_minima_arrays=False)
opt(10000)

Basin Hopping

Below outlines the features of the basin hoppping implementation. All flags are equivalent to the description above except for those defined below.

class tsase.optimizer. BasinHopping (self, atoms, temperature=100 * kB, optimizer=SDLBFGS, fmax=0.1,dr=0.1, active_ratio=1.0, adjust_cm=True, mss=0.2, minenergy=None, distribution=’uniform’, significant_structure = False, pushapart = 0.4,jumpmax=15,adjust_step_size=None, target_ratio = 0.5, adjust_fraction = 0.05)

temperature : temperature in kT

Usage:

Below is an example script of how to use this optimizer:

from tsase.optimize.basin import BasinHopping
lj = tsase.calculators.lj(cutoff=35.0)
system = tsase.io.read_con('lj38-cluster.con')
system.set_calculator(lj)
opt = MinimaHopping(atoms=system, minenergy=-173.918427)
opt(10000)

Minima Hopping

Below outlines the features of the minima hoppping implementation. All flags are equivalent to the description in the combined GO method.

class tsase.optimizer. MinimaHopping (self, atoms, T0, beta1, beta2, beta3, Ediff0, alpha1, alpha2, mdmin, logfile, minima_threshold, timestep, optimizer, minima_traj, fmax, dimer_a, dimer_d, dimer_steps)

Usage:

Below is an example script of how to use this optimizer:

from tsase.optimize.minimahopping import MinimaHopping

lj = tsase.calculators.lj(cutoff=35.0)
system = tsase.io.read_con('lj38-cluster.con')
system.set_calculator(lj)
opt = MinimaHopping(atoms=system)
opt(totalsteps=10000, maxtemp=200000, minEnergy=-173.918427)

References

[1]	Wales, J. P. K. Doye, “Global Optimization by Basin-Hopping and the Lowest Energy Structures of Lennard-Jones Clusters Containing up to 110 Atoms”, J. Phys. Chem. 101,5111-5116 (1997).

[2]	Goedecker, “Minima hopping: An efficient search method for the global minimum of the potential energy surface of complex molecular systems”, J. Chem. Phys. 120, 9911 (2004).

[3]	(1, 2) Kim, S. K. Choi, and H. M. Lee. “New algorithm in the basin hopping Monte Carlo to find the global minimum structure of unary and binary metallic nanoclusters.” J. Chem. Phys., 144702 (2008).

[4]	White, and H. R. Mayne. “An investigation of two approaches to basin hopping minimization for atomic and molecular clusters.” Chemical Physics Letters, 463-468 (1998).

[5]	(1, 2) Iwamatsu, and Y. Okabe. “Basin hopping with occasional jumping.” Chem. Phys. Lett., 396-400 (2004).

[6]	(1, 2, 3, 4) Shonborn, S. Goedecker, S. Roy, and A. Oganov, “The performance of minima hopping and evolutionary algorithms for cluster structure prediction”, J. Chem. Phys. 130, 144108 (2009).

[7]	G Rossi and R Ferrando, “Searching for low-energy structures of nanoparticles: a comparison of different methods and algorithms” J. Phys.: Condens. Matter 21, 084208 (2009).
